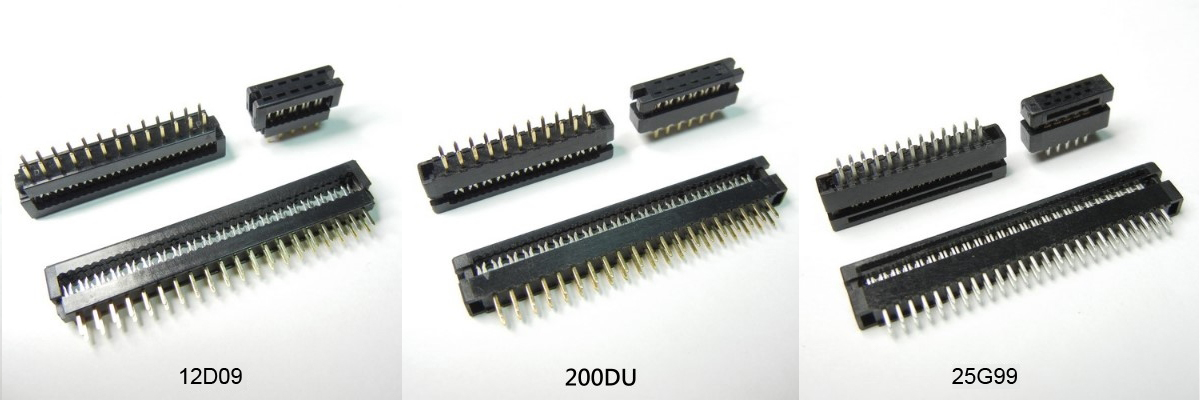

IDC TYPE DIP PLUGS & RED MINIATURE CONNECTORS
PART NO. | PITCH | NO. OF CONTACTS | AFTER ASSEMBLY | INSULATOR COLOR | TYPE |
12D09-xxxTB | 1.27mmx1.27mm | 006~080 | H=5.00mm | black | DIP plug |
200DP-xxxxB | 2.00mm | 006~068 | H=5.20mm | black | ditto |
200DU-xxxTB | 2.00mm | 006~068 | H=5.08mm | black | ditto |
254DU-xxxxx | 2.54mm | 006~064 | H=7.50mm | black, gray | ditto |
25G99-xxxSB | 2.54mm | 006~064 | H=5.80mm | black | ditto |
254M1-xxxTR | 2.54mm | 004~026 | IDC plug | Red | micro match |
254M2-xxxTR | 2.54mm | 004~026 | IDC DIP Socket | Red | ditto |
ORDERING INFORMATION:
P/N 12D09-xxx TB
P/N 200DP-xxx xB
P/N 200DU-xxx TB
P/N 254DU-xxx xx
1. NO. OF CONTACTS:
006, 008… (see above)
2. CONTACT FINISH:
“S” SELECTIVE GOLD PLATED
“T” FULL TIN PLATED
3. INSULATOR COLOR
“B” BLACK
“A” GRAY
1. NO. OF CONTACTS:
004, 006… (see above)
2. CONTACT FINISH:
“T” FULL TIN PLATED
3. INSULATOR COLOR:
“R” RED
